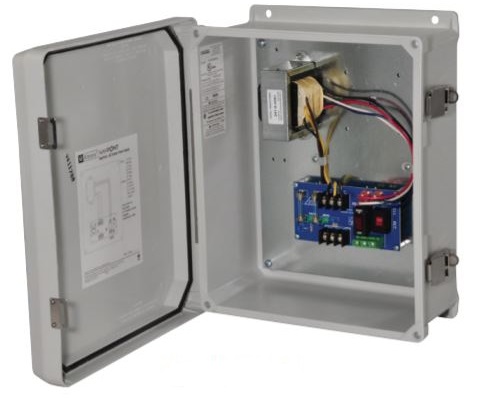

7411543-010 | Specification (Altronix WayPoint10A) are attached

Environment

• 4264 24 VAC Power, RJ45 Pigtail, Accessory Pigtail, Wires
• 4265 24 VAC Power, RJ45 Pigtail, Accessory Pigtail, MS Conn
• 4226 24 VAC Power, MS Connector Pigtail
• 4224 24 VAC Power, MS Connector (CA279x)

Purpose:

Provide 24VAC to non POE++ cameras

Specifications:

Input
Voltage 115VAC, 50/60Hz, 1.2A or
             230VAC, 50/60Hz, 0.7A
Output Options
a. 24VAC @ 4A max.
b. 28VAC @ 3.5A max.
c. Both 24VAC and 28VAC, not to exceed 3.5A max.
Fuse Ratings 5A / 250V
Indicators (LED)
Individual power output LED indicators
Illuminated master power switch

Agency Listings
CE     European Conformity
Physical and Environmental
Dimensions (H x W x D)
13.31” x 11.31” x 5.59” (338.1mm x 287.3mm x 142mm)
Product Weight 11.8 lb. (5.35 kg).
Shipping Weight 13.0 lb. (5.9 kg)
Temperature
Operating -20ºC to 50ºC (-4ºF to 122ºF)
Storage -40ºC to 70ºC (-40ºF to 158ºF)
Relative Humidity 85% +/-5%
BTU/Hr. (approx.): 50 BTU/Hr.

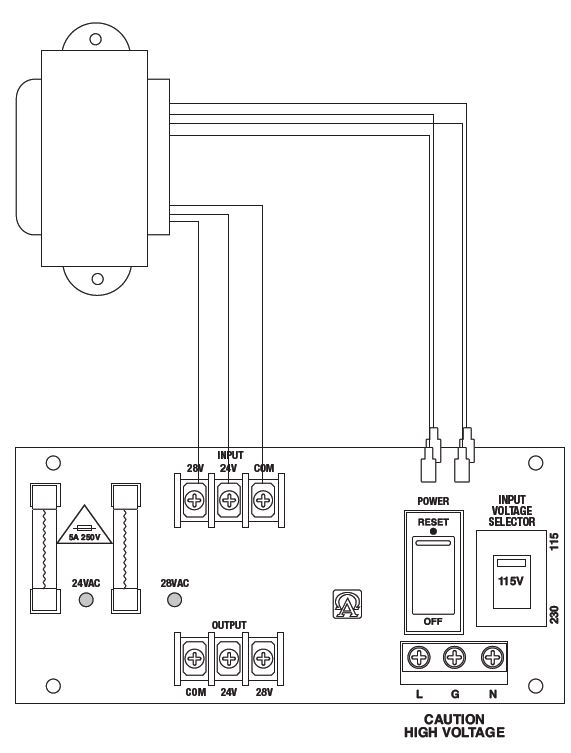

Connection:
