This product has been discontinued and is no longer being manufactured by CostarHD. These images are for troubleshooting purposes only.
This custom wiring assembly consists of the below assemblies:

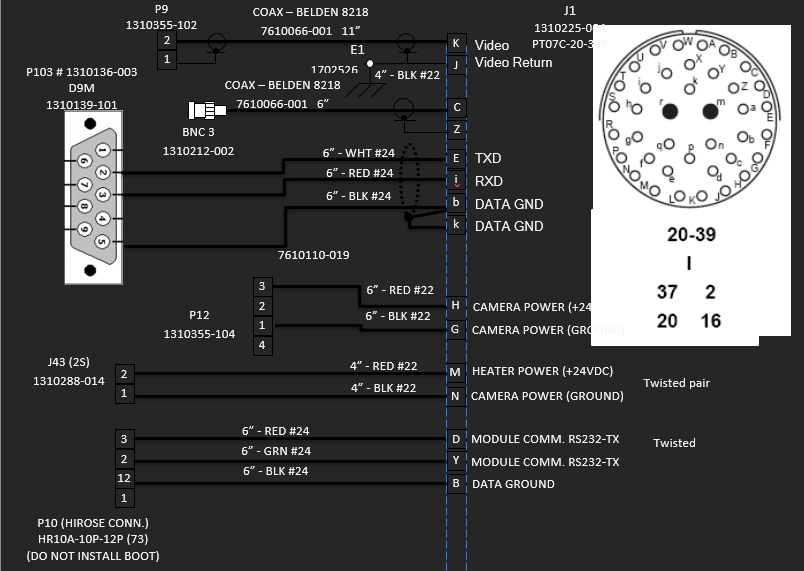

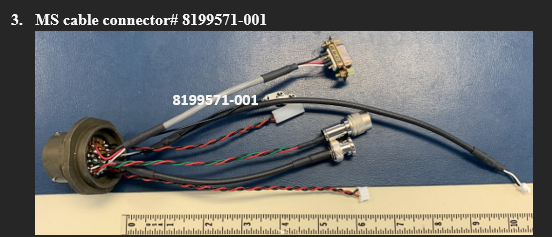

8199571-001 Main connector J1 cable assy.

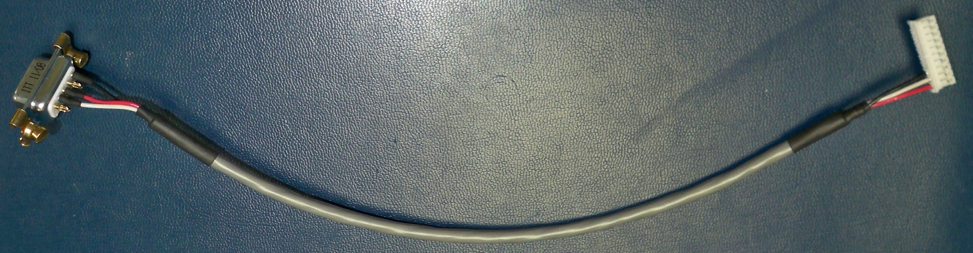

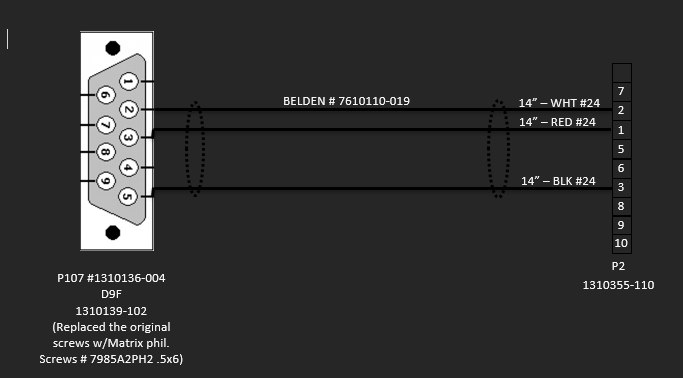

8199572-001 Communication cable assy.

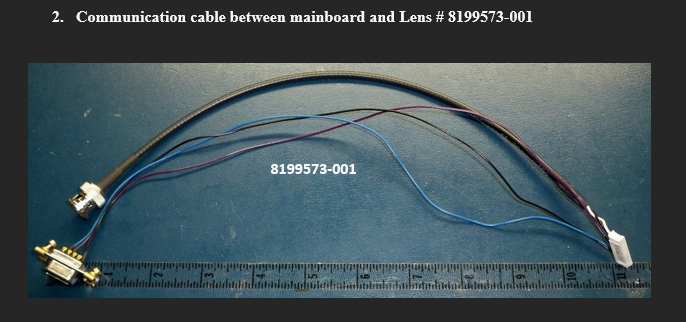

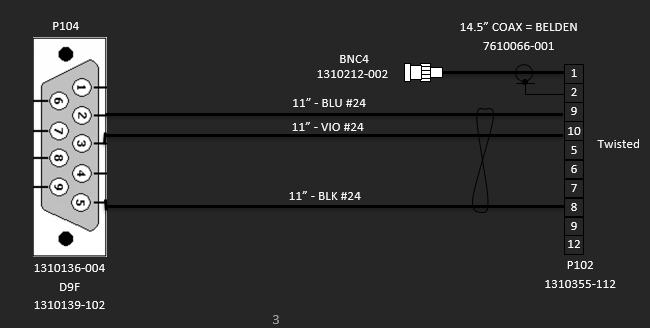

8199573-001 Lens communication cable assy.

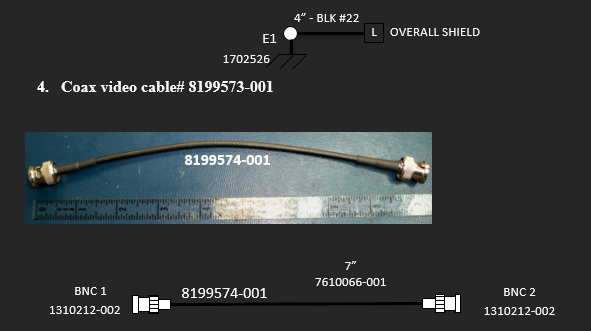

8199574-001 Coax video cable assy.

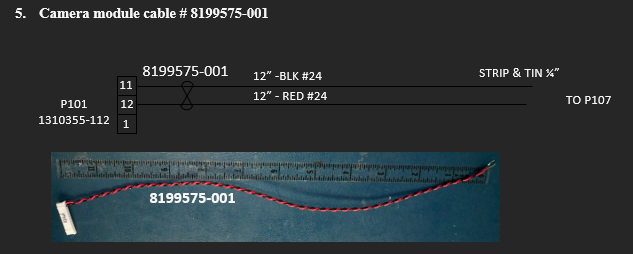

8199575-001 Camera Module Power cable assy.

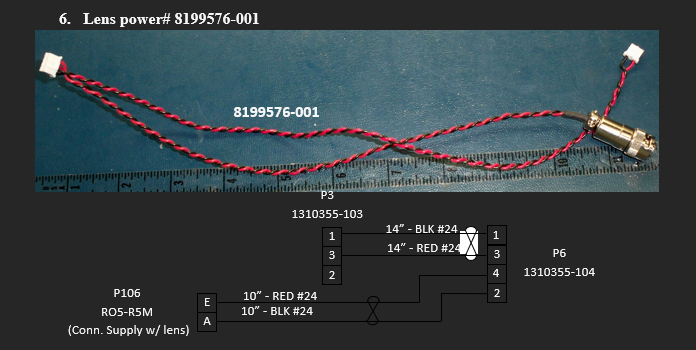

8199576-001 Lens Power cable assy.

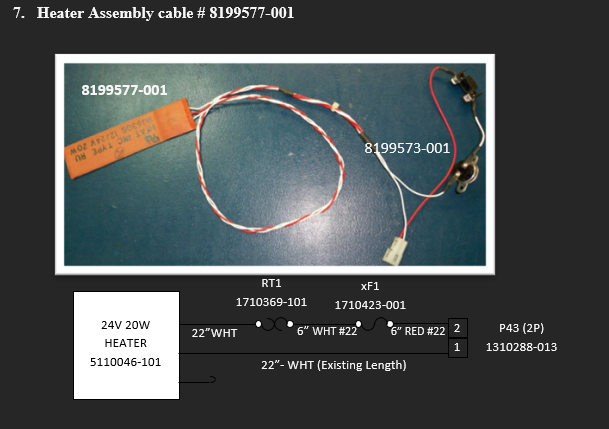

8199577-001 Heater cable assy.
| 8199572-001 |
