Rise 4224-1000-0x | Accessory Cables

Environment:

• 4224-1000-0x
• CA279x (7411279x)

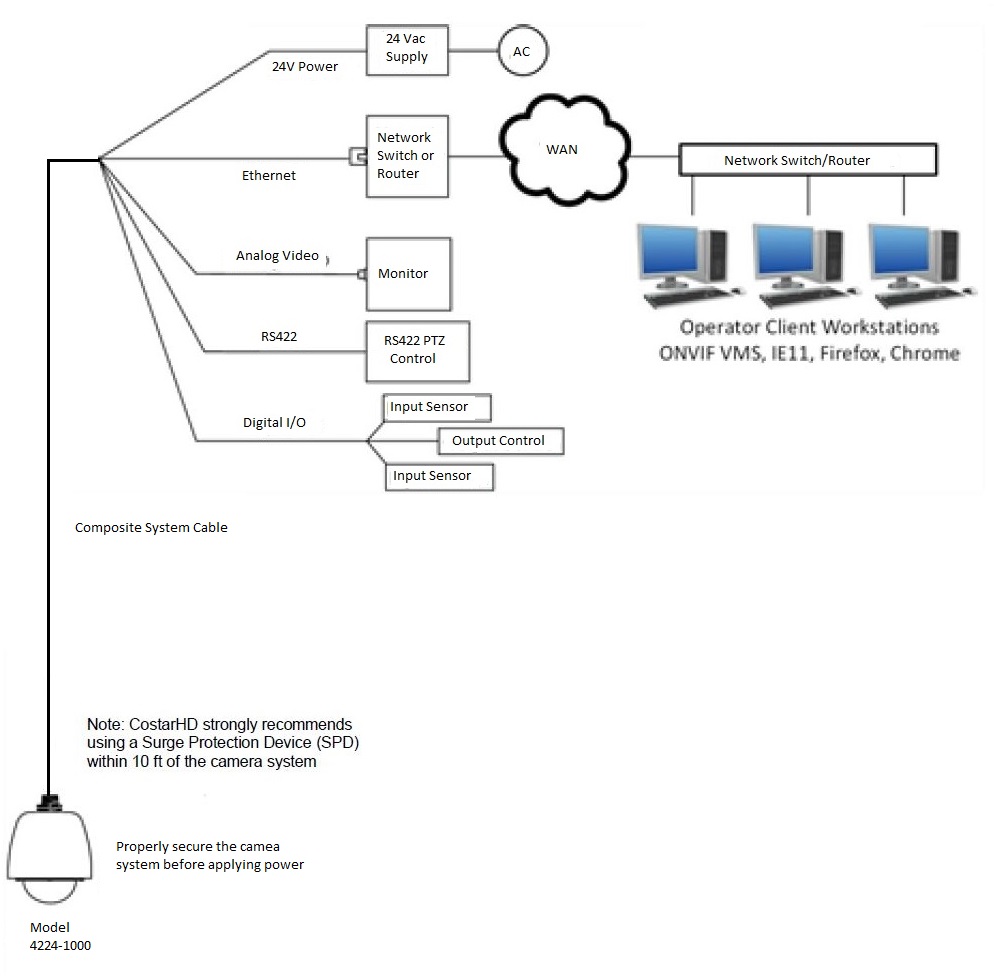

Diagram:

• For 24 V Power: Two wires, insulated for 300 V minimum, 18 AWG cord for power. Use for distances up to 80 feet (29 m) for 24 V cables.
• For I/O: 24 AWG insulated for 300 V minimum. Use for distances up to 250 feet (76.2 m).
• For Analog Video: The coax cable for analog video must be rated at 75 ohms, and must not exceed a maximum attenuation of 6 dB at 10 MHz for the length of cable required.
• For Data: A shielded two-twisted pair data cable is recommended. For lower baud rates (9,600 or less), the Belden 8723 shielded cable is usually suitable for distances up to 750 feet.

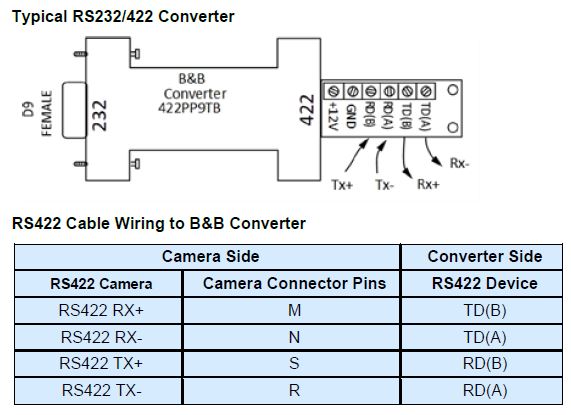

• If the RS422 interface is used for sending and receiving serial data, an RS232/422 converter is used between the camera system and a computer.


For more information on the installation download the Installation manual https://costarhd.com/Product/rise-4220hd-series
