- 426x Series
The camera system is built with one or two cables attached to the camera base for electrical connection.
The model number identifies the type(s) of cable(s) the camera system requires.

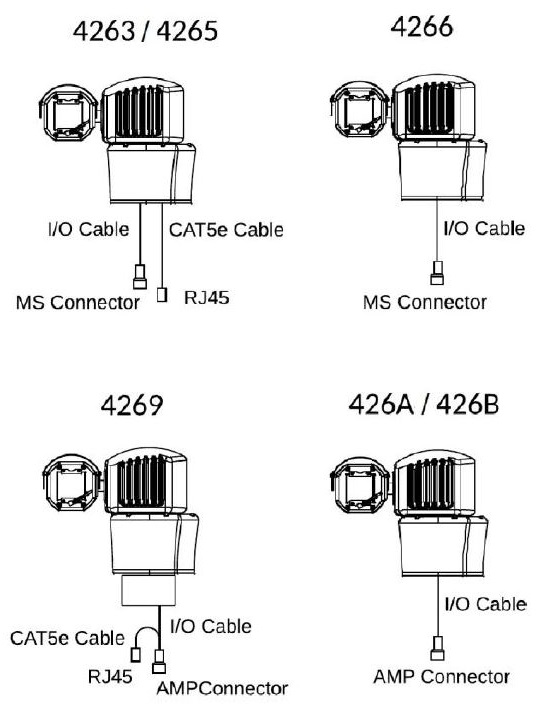

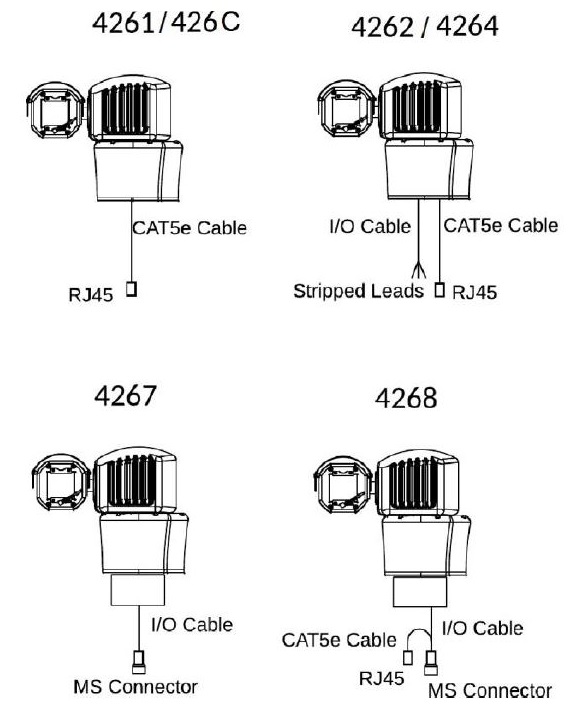

The camera system can be ordered with a combination of two cables. The following pictures show camera models with associated Pigtail Cables:
4260HD Model and Cables

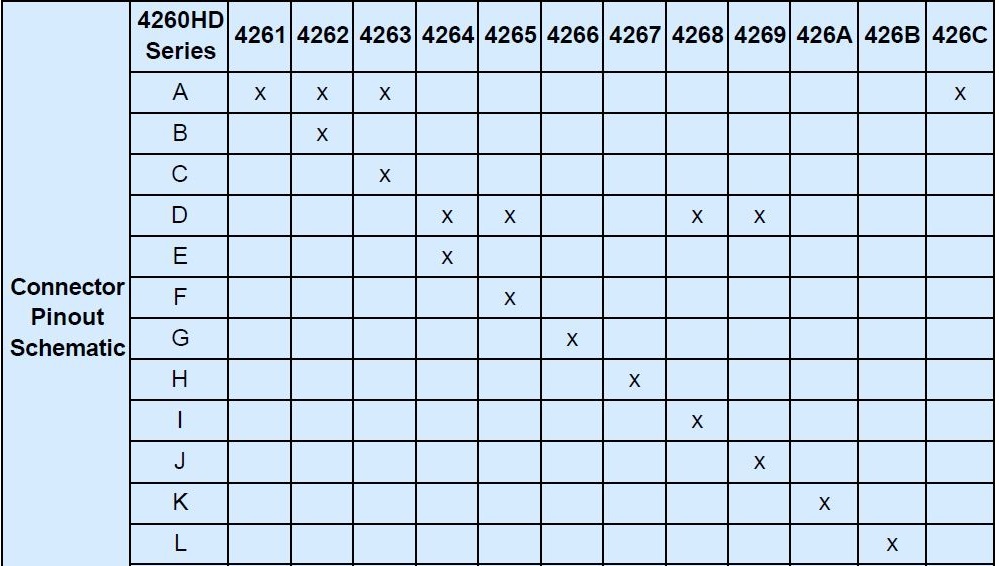

Camera Connector Configuration Table:

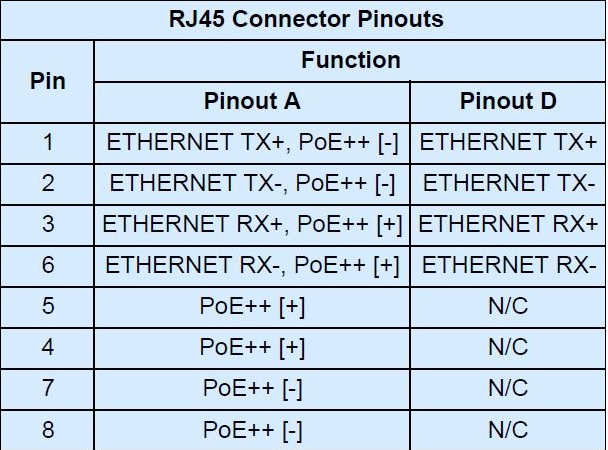

RJ45 Pinout Table

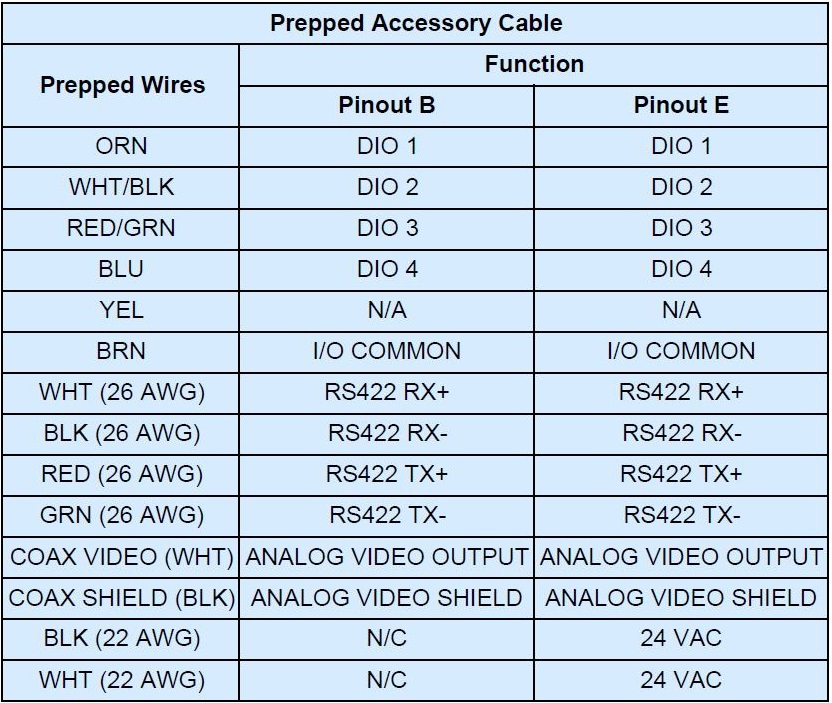

Prepped Accessory Cable Wire Definitions Table:

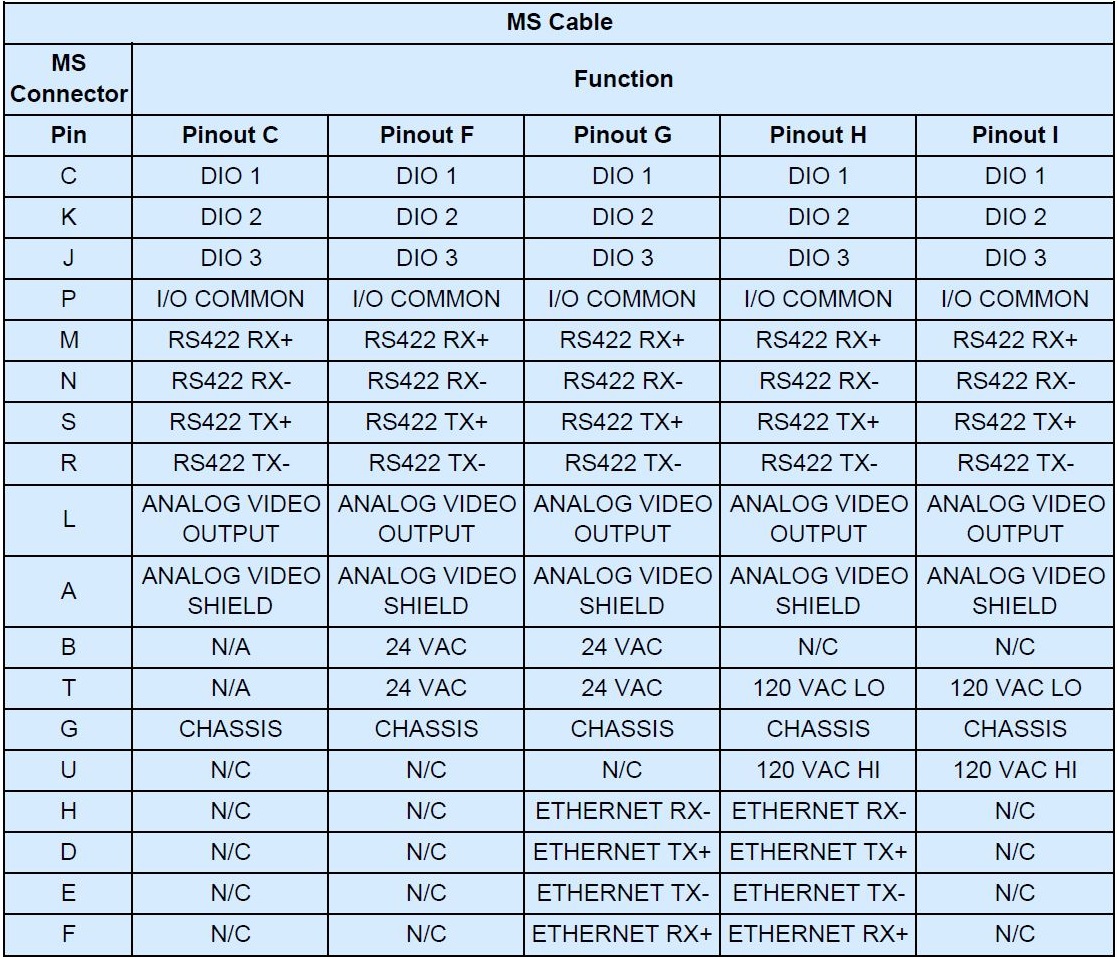

MS Pigtail Cable Pinouts Table:

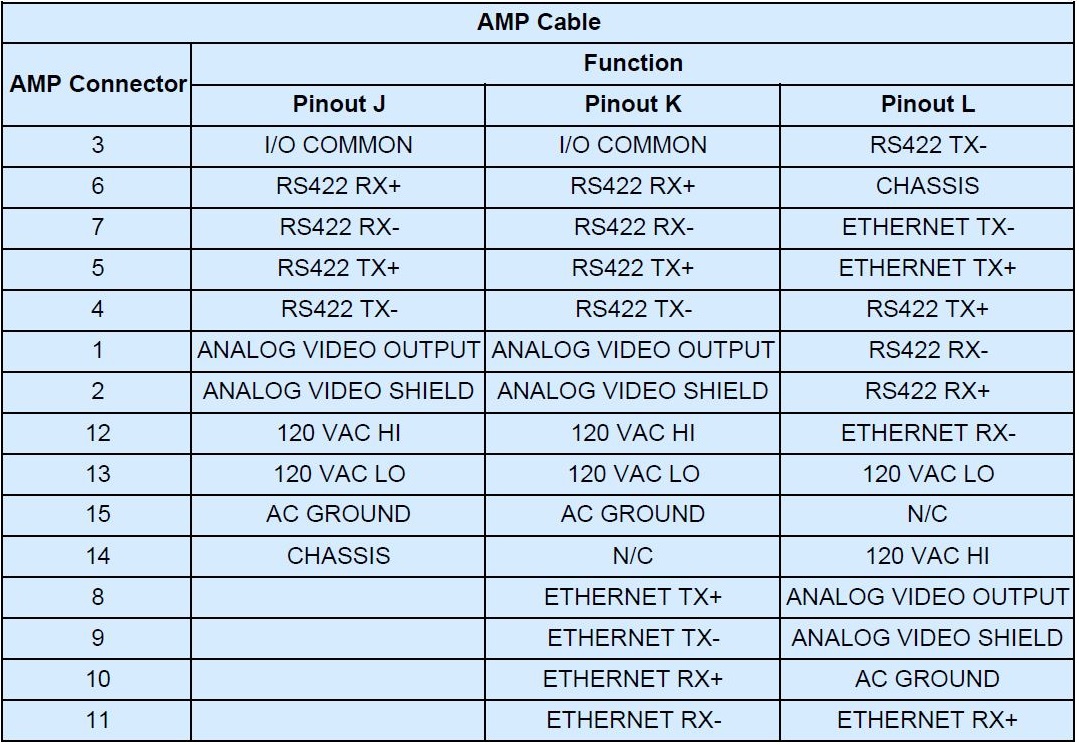

AMP Pigtail Connector Pinouts Table

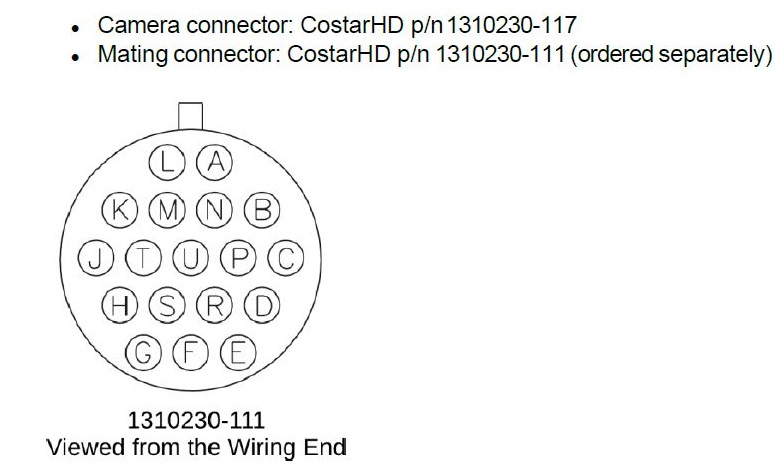

18-pin MS Type (Metal) Connector and its Mating System Cable Connector

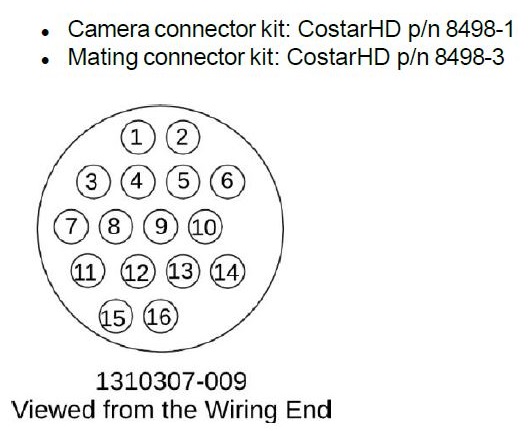

Amp Type (Plastic) Connector Kit and its Mating System Cable Connector Kit
Please refer to the Installation Manual if more information is needed. Click Here
