How to discover Helios cameras

Environment:

• CohuONVIFDiscovery Software (attached below)
• Helios Series

Procedure:

1. Run the CohuONVIFDiscovery.exe file (7500Discovery.exe). Click to start it

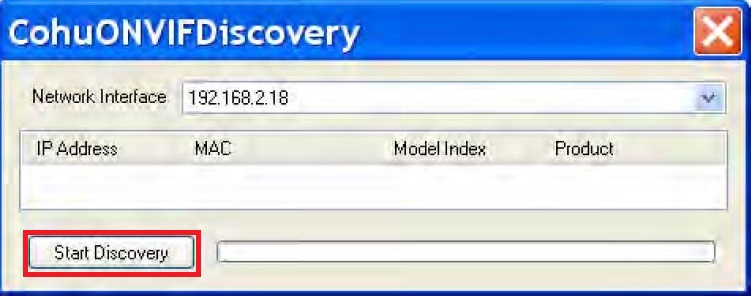

2. The CohuONVIFDiscovery window will be displayed
   NOTE: Auto-discovery feature uses network multicast packets and may not work through network routers.

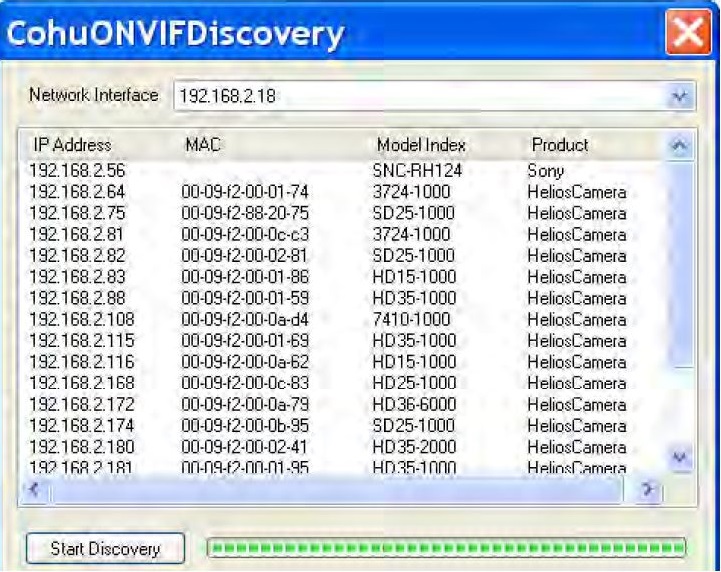

3. Click on the “Start Discovery” button. A list of cameras will be automatically displayed.


   NOTE: Use the MAC Address or Model Index to identify CohuHD cameras. “00-09-f2” identifies cameras as CohuHD cameras. The MAC address of the camera is on the serial number label.

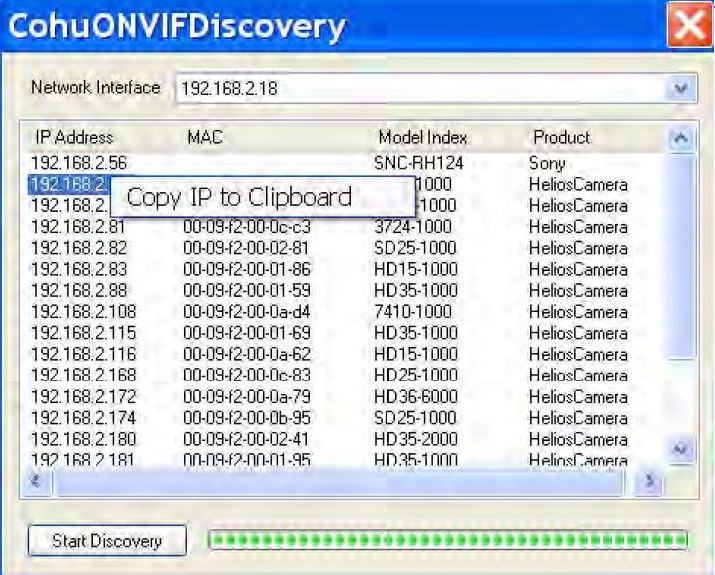

4. Right-click a camera entry. Click Copy IP to Clipboard.

5. NOTE: The CohuONVIFDiscovery software uses the ONVIF device discovery service. If the ONVIF discovery service is disabled, the CohuONVIFDiscovery software will not find the camera.
