Waterproof RJ45 Coupler Assembly

Environment:

• Rise series
• Octima
• Part Number: 7610203-002

Purpose:

• How to assemble the coupler

Parts:

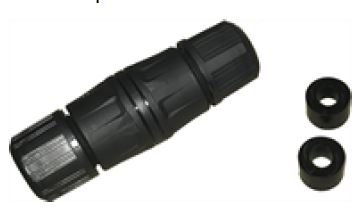

The coupler comes assembled with extra two large-diameter cable seals for thicker cables.

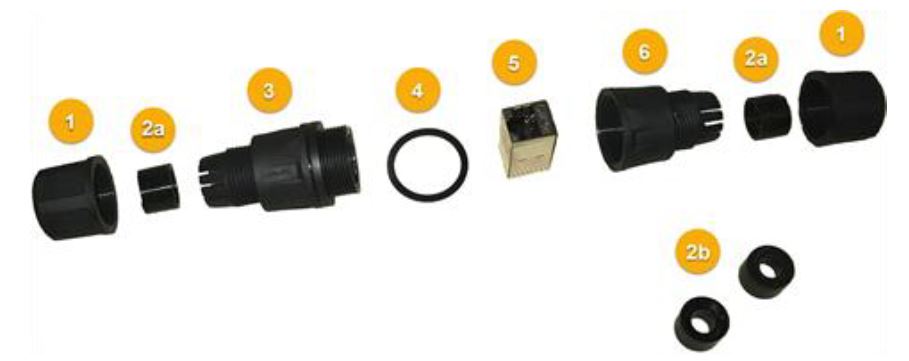

The coupler package consists of the following parts:

1. Sealing Nut (2 pcs)
2. Seal
   a. Small diameter cable (2 pcs) – already inserted
   b. Large diameter cable (2 pcs) – extra separately
3. Coupler Body
4. Washer for Coupler Body
5. Two-Way RJ45 Port for Coupler Body
6. Sealing Collar

Assembly : Warning: Do not use tools. All parts must be hand-assembled.

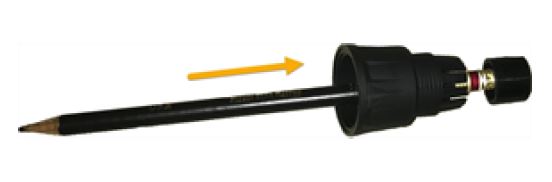

1. Using the head of a pencil or another non-sharp object, push the Seal (2) out of the Sealing Collar (3)

2. If the RJ45 plug has a strain-relief boot, push it away from the RJ45 plug. The strain-relief boot will not be used.

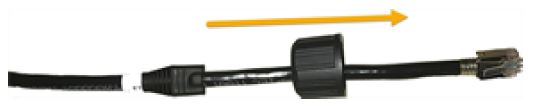

3. Pass the cable through the Sealing Nuts (1)

4. Pass the cable through the SealingCollar (3).

5. Insert the Washer and the Two-Way RJ45 Port (5) in the Coupler Body (3) (if disassembled).

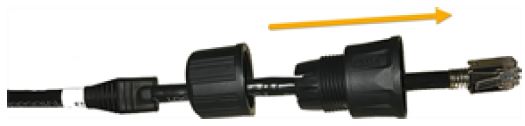

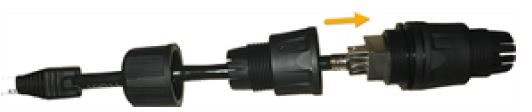

6. Insert the RJ45 plug into the Coupler Body (3).

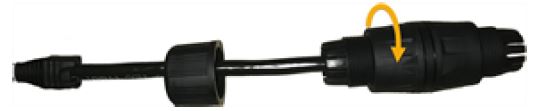

7. Attach the Sealing Collar (6) to the Coupler Body (3). Make sure it is tightened completely.

8. Select the desired Seal (2) and press to open the notch.

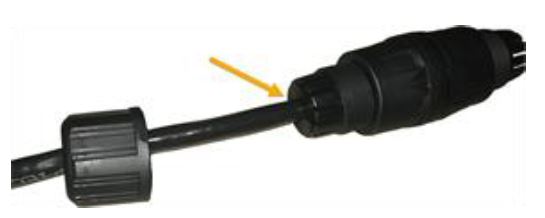

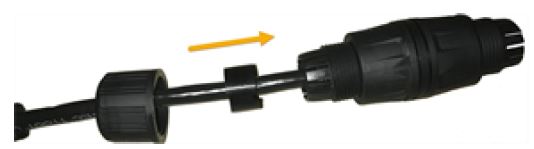

9. Insert the Seal (2) ontothecablewiththerecessedsurfacefacingtheSealingCollar (6), then push the Seal (2) all the way into the Sealing Collar (6).

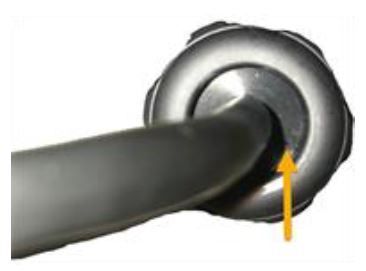

   The Seal (2) should sit completely flushed inside the fingers of the Sealing Collar with the edge not protruding.

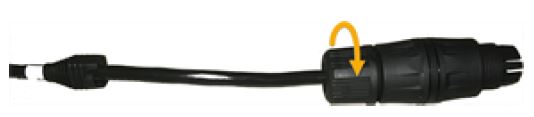

10. Now attach the Sealing Nut (1) to the connectedSealingCollar (6).


    Warning: Tighten by hand and do not over-tighten. Using tools and over-tightening may split the Seal’s notch, which compromises the waterproof assembly
    The Seal’s notch should join without a flaw.

11. Repeat the steps to connect the network cable to the other side of the coupler.
