3432-xxxx | How to Program Presets

Environment:

• 3432-2000
• 3432-3000
• 3432-4000
• Internet Explorer (IE) Only

Procedure:

1. Log on to the camera web page.

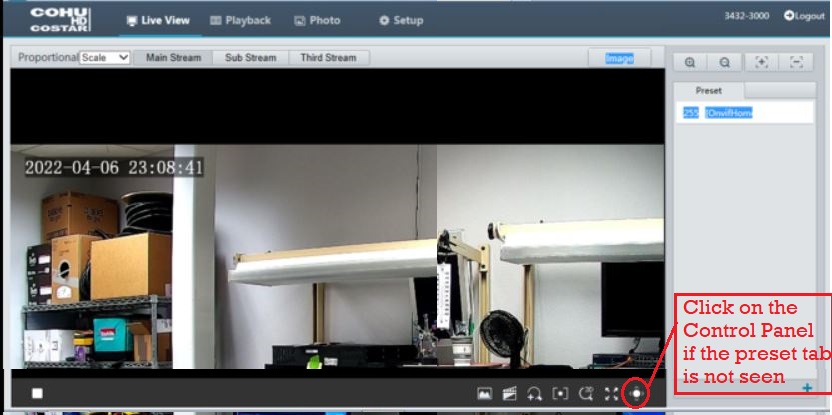

   Note: Click on the Control Panel icon if the preset tab is not seen

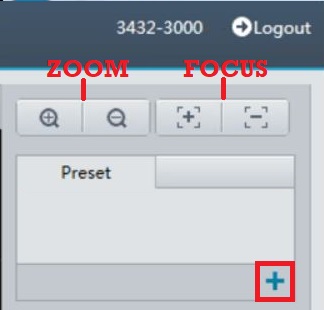

2. Make your field view adjustment by Zooming in/out and Focusing, then Click on the Plus (+) icon in the lower right corner.

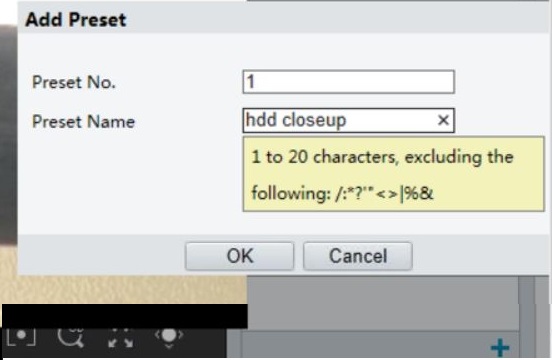

3. In the "Add Preset" menu enter your Preset No and Preset Name then press OK.

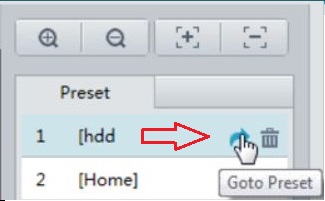

4. Confirm preset by hovering over the arrow and clicking on the "Goto Preset".

5. If the programmed preset works, repeat the steps if more presets are needed or exit the camera menu is done.
